Pressure vessel engineering for process facilities
KHAAS Design & Engineering supports pressure vessel design and mechanical engineering for oil and gas plants, refineries and petrochemical facilities. The design scope brings pressure-boundary calculations, nozzle and support assessments, fabrication drawings and plant interfaces into a coordinated package.
A pressure vessel contains a fluid under internal or external pressure. Its design basis must define the service conditions, material requirements, governing code and acceptance responsibilities before detailed calculations begin.
Start with a complete design basis
Operating pressure and temperature describe normal service; design conditions are established through the project’s process and mechanical design requirements. Include credible operating cases, minimum design metal temperature, corrosion allowance, external-pressure conditions and cyclic duty where applicable.
The owner and process team provide the service data and relief-system requirements. Mechanical design uses those inputs to assess the vessel components and their interfaces.

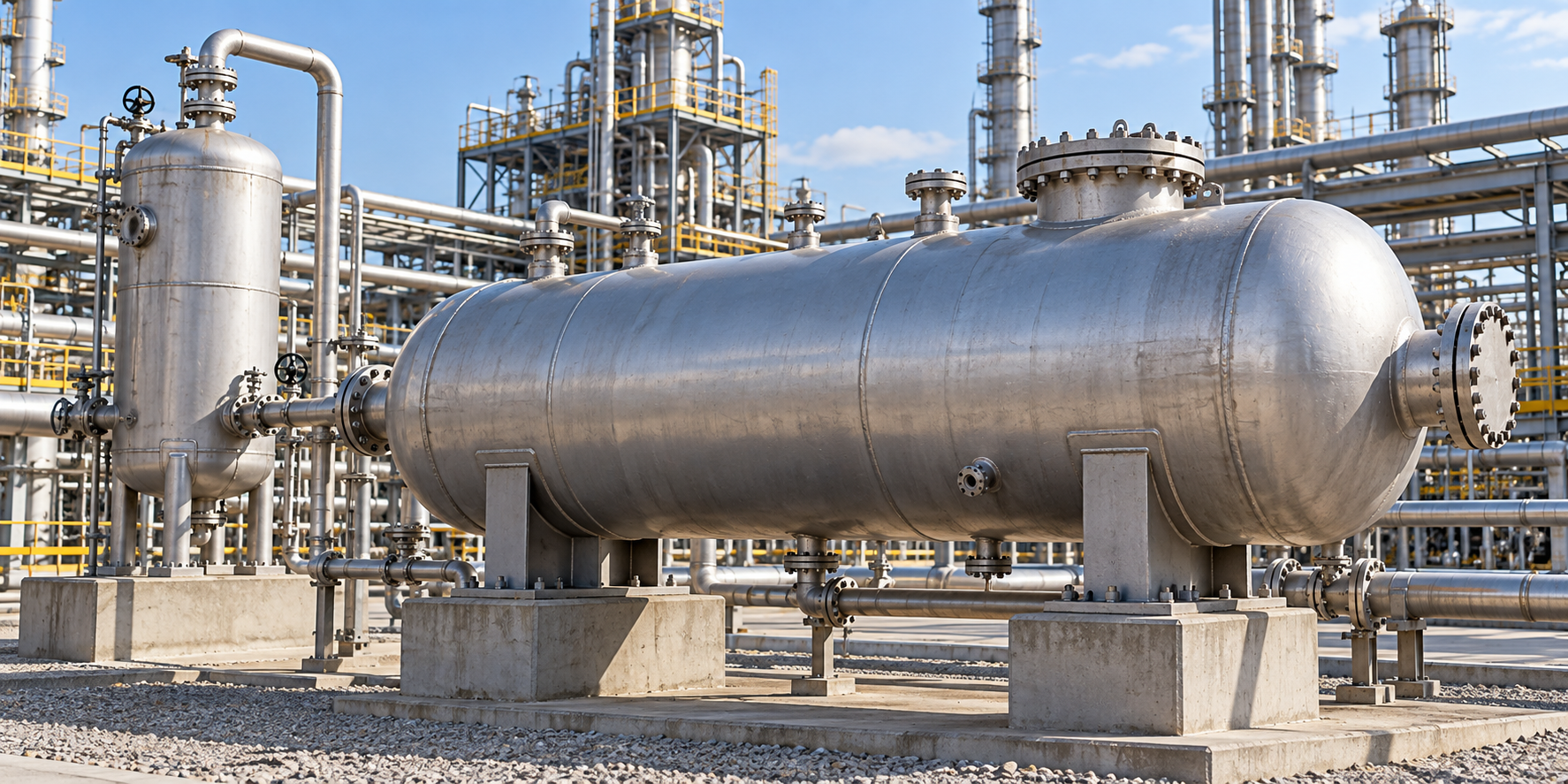

Pressure vessels used in oil and gas
Horizontal and vertical separators.
Knockout drums, scrubbers and filter vessels.
Air receivers and pressurized utility vessels.
Columns, towers and other process vessels.
Pressure-retaining components of heat exchangers within the agreed scope.
Geometry, materials, internals and support arrangements depend on the process duty. Atmospheric storage tanks require their own applicable design basis and should not automatically be treated as pressure vessels.
Pressure vessel design methodology
Review inputs: confirm the process data sheet, dimensions, design conditions, materials and adopted code.
Assess the pressure boundary: evaluate shells, heads, openings and reinforcement for the relevant conditions.
Coordinate external loads: review nozzle forces, equipment attachments, wind, seismic and support reactions.
Check supports: assess saddles, skirts or legs and their interfaces with the vessel and foundation.
Evaluate special conditions: address external pressure, cyclic service or local stresses where required.
Document the design: align calculations, drawings, material information and review comments.
Codes, inspection and certification responsibilities
The project specifies the governing pressure-vessel code, edition and jurisdictional requirements. ASME BPVC Section VIII Division 1 addresses design, fabrication, inspection, testing and certification within its scope. Division selection and any alternative code must be agreed for the specific project.
A calculation report alone is not a code stamp or manufacturing certification. Fabrication quality systems, inspection, testing and certification remain subject to the applicable code and the responsible authorized parties.
Pressure vessel engineering deliverables
Mechanical design basis and calculation report.
General arrangement, nozzle schedule and orientation drawings.
Nozzle-load and local-stress assessments where included.
Support details and foundation reaction schedules.
Fabrication drawings and material take-off within scope.
Design input for the specified test condition and technical review responses.
Coordinate nozzle loads with pipe stress analysis, supports with plant foundation design, and packaged installations with modular skid engineering.
Inputs needed for a pressure vessel quotation
Share the process data sheet, design and operating conditions, fluid service, preliminary dimensions, material requirements, corrosion allowance, nozzle details and site location. Include the governing code, project specifications, external loads, cyclic-service information and required deliverables.
For modifications to existing equipment, provide the original design records, as-built drawings and inspection information. The agreed scope should identify any additional assessment or approval requirements.
Pressure vessel design FAQs
Is wall thickness the only design check?
No. Openings, supports, external loads, material requirements and relevant service conditions also influence the assessment.
When is detailed finite element analysis considered?
It may be appropriate for complex geometry or loading that is not adequately represented by simpler applicable methods. The design basis determines the required assessment and acceptance criteria.
Does a design report certify the fabricated vessel?
No. Design documentation and fabrication certification are distinct responsibilities. Inspection and certification must follow the applicable project and code requirements.
Discuss your oil and gas pressure vessel
Send your vessel data sheet and project requirements to KHAAS Design & Engineering for scope review and a quotation.
