At KHAAS Group, we specialize in Pipe Support Design — an essential service that ensures your industrial piping systems operate safely under all mechanical, thermal, and environmental conditions. Our structural design team delivers customized, code-compliant pipe support solutions for a wide range of industries, including oil & gas, power plants, process industries, and infrastructure projects.

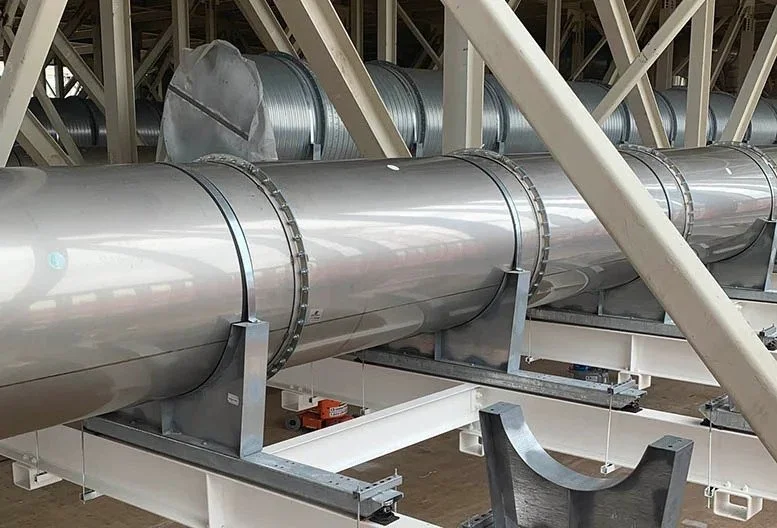

Large metallic industrial pipes supported by white metal brackets and beams, with some ducting and structural elements visible in the background.

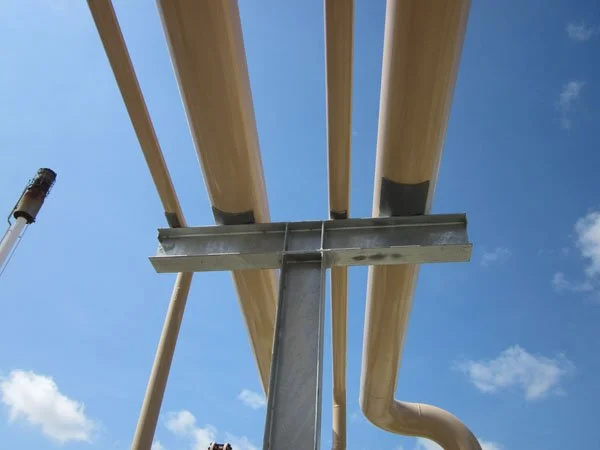

Our Pipe Support Design Services Include

  • We analyze the function and requirements of each pipe run to recommend the most suitable support type, such as:

    • Rigid supports (clamps, shoes, brackets)

    • Spring supports (variable or constant)

    • Hangers, saddles, guides, and anchors

    • Sliding or roller supports for thermal movement

    Each support type is selected based on pipe size, operating temperature, material, and dynamic loads.

  • Our team evaluates all relevant loads and ensures each support can carry the expected forces without overstressing the pipe or structure. This includes:

    • Weight of pipe, fluid, insulation, and fittings

    • Thermal expansion and contraction

    • Wind and seismic loads

    • Dynamic and occasional loads (water hammer, surge)

    • Equipment-induced loads and nozzle loads

    • Load combinations per applicable design codes

    All supports are engineered for longevity, safety, and low maintenance.

  • We provide comprehensive detailing and documentation to guide fabrication and installation, including:

    • Pipe support layout drawings

    • Standard support assemblies and custom details

    • Connection designs (to steel, concrete, equipment)

    • Material specifications and bolt schedules

    • 3D integration with structural and piping models

    • Bill of materials (BOM) and tagging system

    Our documentation is clear, compliant, and construction-ready.

Design Codes & Standards We Follow:

  • ASME B31.1 / B31.3

  • MSS-SP58 / SP69

  • IS 800 / IS 1893

  • AISC, ASTM, and international structural standards

  • Project-specific guidelines and client standards

Industries Served

Oil & Gas

Petrochemical

Icon of a power plant with an electricity tower in a hexagon
Icon of a factory assembly line with robotic arm

Power Plants

Food & Beverages

Icon of a pharmaceutical factory with pills and smoke
Icon of fluid flowing through geometric containers

Pharmaceutical & Biotechnology

Water treatment

Industrial icon depicting a factory with chimneys and processing tanks inside a hexagon shape.
Illustration of an offshore oil rig with a crane and buildings on a hexagonal background.

Let’s Support Your Project — Literally!

Your piping systems need strong, flexible, and well-designed support systems. Let our structural experts design solutions that enhance safety, reduce maintenance, and ensure long-term reliability.

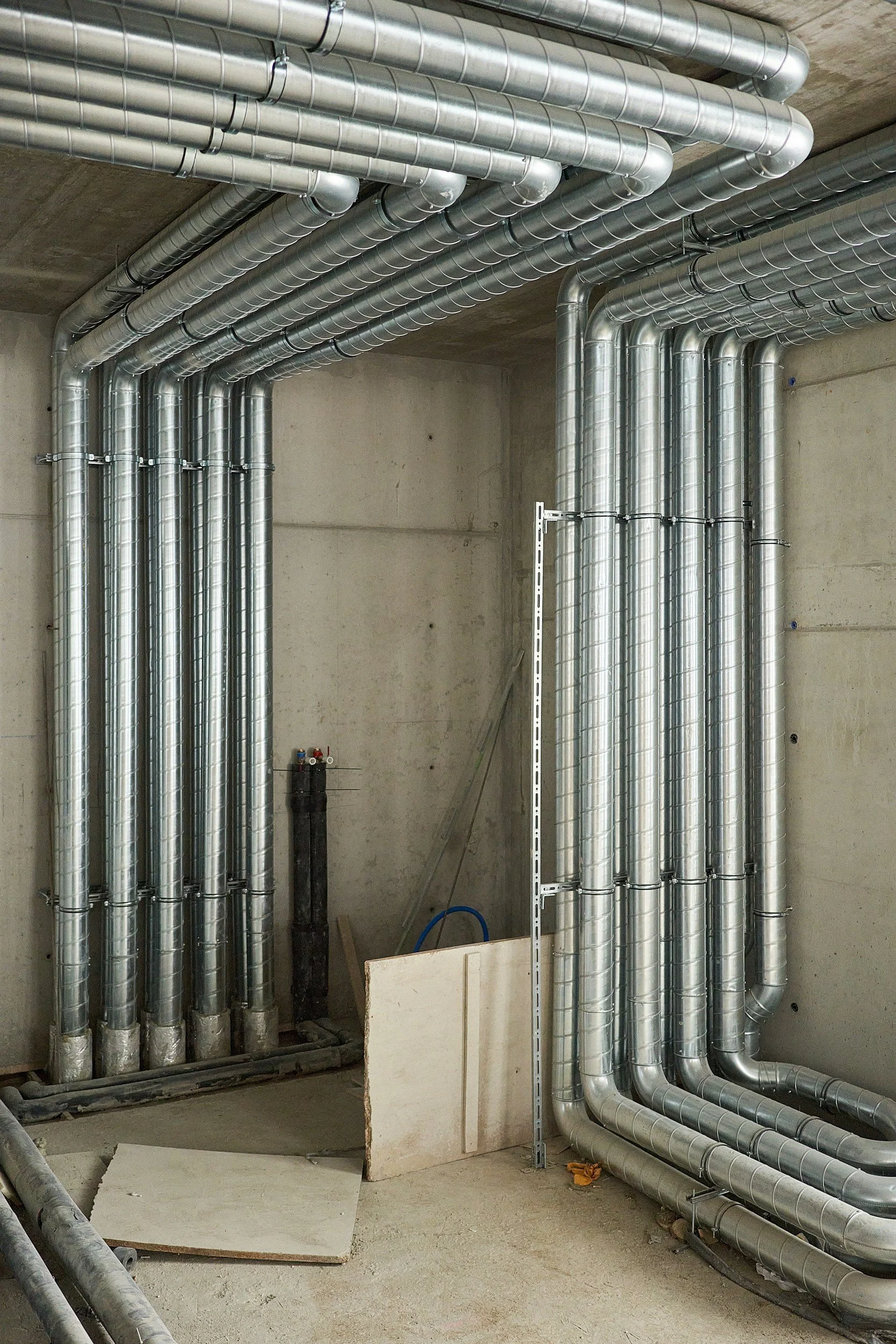

Multiple silver-colored pipes installed in a building under construction, running along the ceiling and wall.
