Filtration Skid Design and Detailed Engineering

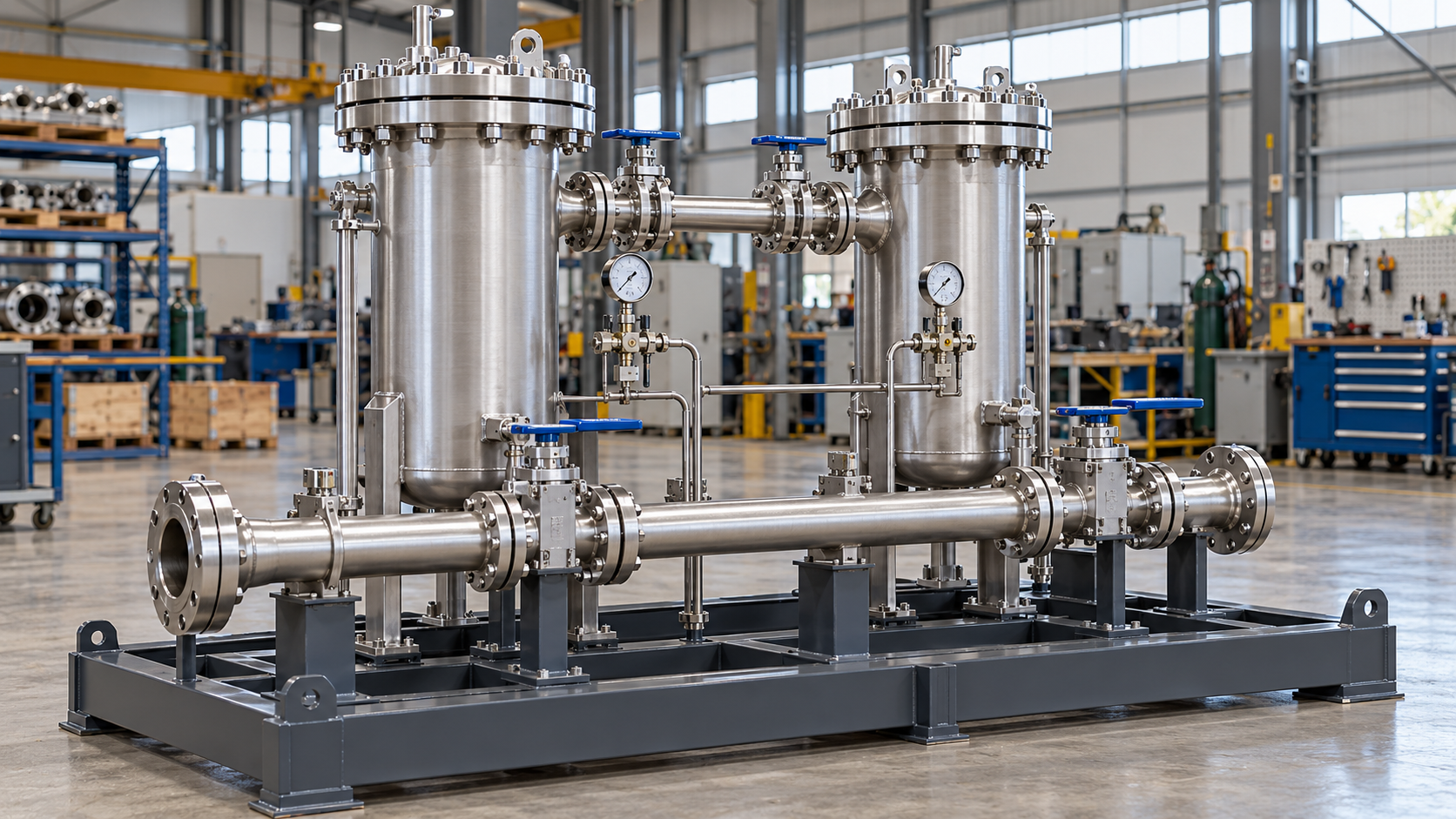

Filtration skid packages integrate filter equipment, connecting pipework, valves, instruments and a supporting base frame. KHAAS Group provides detailed engineering for oil and gas filtration skids, helping EPC contractors and package manufacturers develop coordinated, fabrication-ready designs.
The engineering challenge extends beyond fitting equipment within a footprint. A practical package needs accessible filter elements, clear piping interfaces, suitable structural supports and documented design assumptions.
What Is a Filtration Skid?
A filtration skid is a modular package designed around a defined contamination-removal duty. Depending on the application, the equipment can include strainers, cartridge filters or specialist separation equipment. The selected technology must match the fluid, contaminants and required performance; these devices are not interchangeable.
Oil and gas applications can include process-fluid treatment and equipment protection. The process designer and filtration vendor establish the appropriate equipment and performance criteria for each duty.
Key Considerations in Filtration Package Design
Maintenance envelope: provide the vendor-required space for opening housings and withdrawing filter elements.
Operating arrangement: coordinate single-unit or parallel configurations with the approved process requirements.
Piping interfaces: resolve inlet and outlet connections, vents, drains and instrument access.
Structural loads: define equipment, piping and fluid weights for applicable operating and test conditions.
Handling and installation: agree the lifting arrangement, transport envelope, foundation interfaces and site access constraints.
KHAAS Group’s Engineering Services
Our scope can include skid base-frame analysis and design, steel connections, lifting lugs, anchor-bolt checks, piping stress analysis, pipe supports, 3D modelling, general arrangements and fabrication drawings. Filter housing mechanical design and specialist process duties are included only where expressly agreed.
Filtration Skid Design Methodology
1. Define inputs and responsibilities
Review the P&ID, filter vendor drawings, equipment data, fluid conditions, weights and client specifications. Confirm the filtration duty and performance requirements with the responsible process and vendor teams.
2. Develop the maintenance-led layout
Arrange housings, piping and valves with access for routine operation and element replacement. Resolve cover-opening space, lifting access and maintenance routes before fixing the skid dimensions.
3. Analyse the structure and piping
Assess the applicable operating, test, lifting and transport cases. Coordinate piping reactions with equipment connections and supports, using the approved design basis.
4. Issue a coordinated engineering package
Check calculations and drawings, close interface questions and incorporate agreed client comments. Release fabrication drawings and material schedules with clear revision control.
Typical Deliverables
A project-specific scope may include the structural calculation report, piping stress report, skid 3D model, general arrangement, fabrication drawings, connection and lifting details, pipe-support drawings and bills of materials.
Why Choose KHAAS Group?
KHAAS Group combines structural and mechanical expertise in skid package design and detailed engineering for the oil and gas industry. Our Chennai-based team supports Indian and international projects with practical layouts, coordinated interfaces and documentation suited to client review and fabrication.
Frequently Asked Questions
What is the difference between a filtration skid and a separator skid?
The distinction depends on the treatment objective and selected technology. Filtration commonly targets contaminants using a selected medium or element, while a process separator separates phases such as gas, oil and water. The process requirements determine the appropriate package.
Can the skid accommodate future maintenance?
Maintenance requirements should be defined during layout development using vendor drawings and the owner's operating philosophy. Element withdrawal and equipment-access clearances are checked as part of the agreed layout scope.
What information is needed for a quotation?
Share the P&ID, equipment drawings, filter datasheets, preliminary dimensions, piping specifications, weights and expected deliverables. Include any space or transport constraints.
Discuss Your Filtration Skid Project
Send your RFQ to inquiries@khaas-group.com or call +91 95511 44115. Explore our SKID package design services, pipe stress analysis and 3D modelling and general arrangement services.
